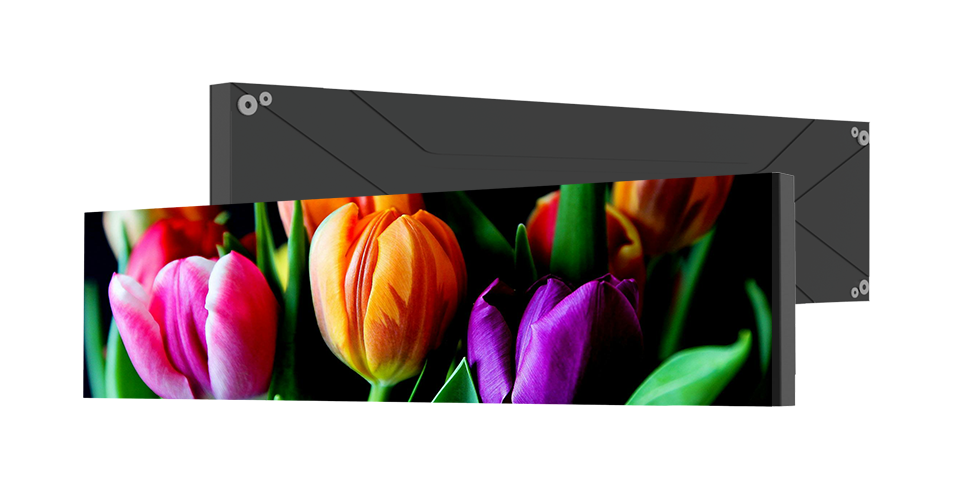

UT系列

戶內前維護

尺寸:250*500mm/250*750mm/250*1000mm

像素間距:P1.95/P2.6/P2.97/P3.91/P4.81

超輕超薄

前維護，維護方便

無縫拼接，室內SMD的完美選擇

應用：商場、電影院、辦公空間

立即聯系我們

  • 5000:1 高對比度

    采用優質黑色LED燈搭配黑色面罩，對比度高達5000:1，使畫面更加細膩、清晰、鮮艷

    高灰階、高刷新率

    高灰階，色彩細節完美呈現，高刷新，有效消除摩爾紋

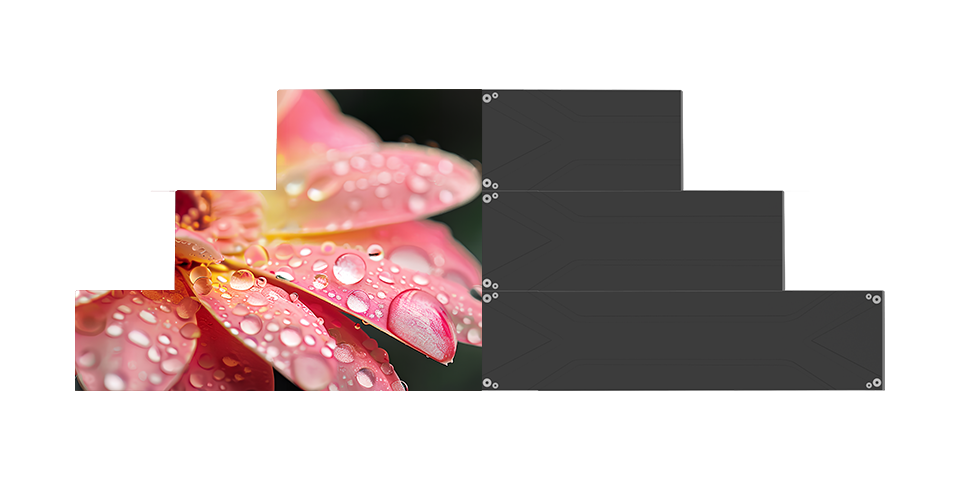

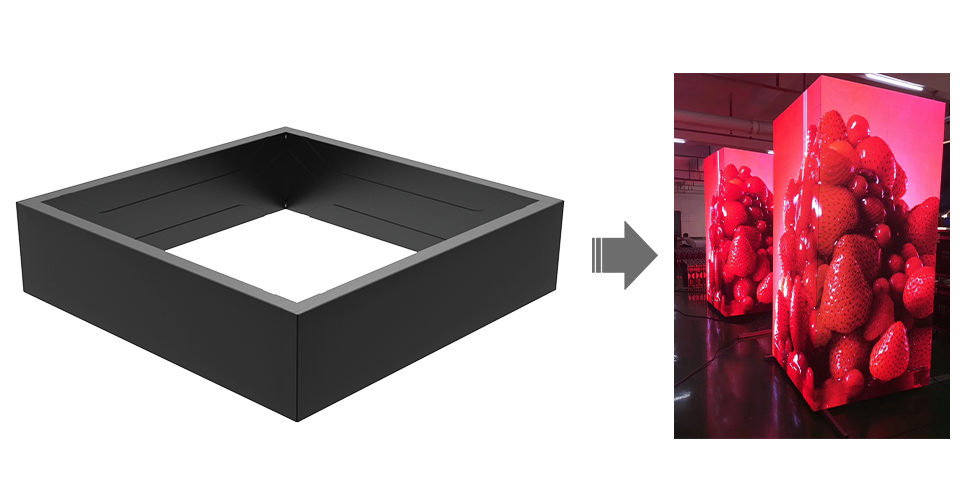

    創意安裝

    超輕超薄，厚度僅42mm，可輕松進行角度拼接，輕松拼裝矩形或其他形狀

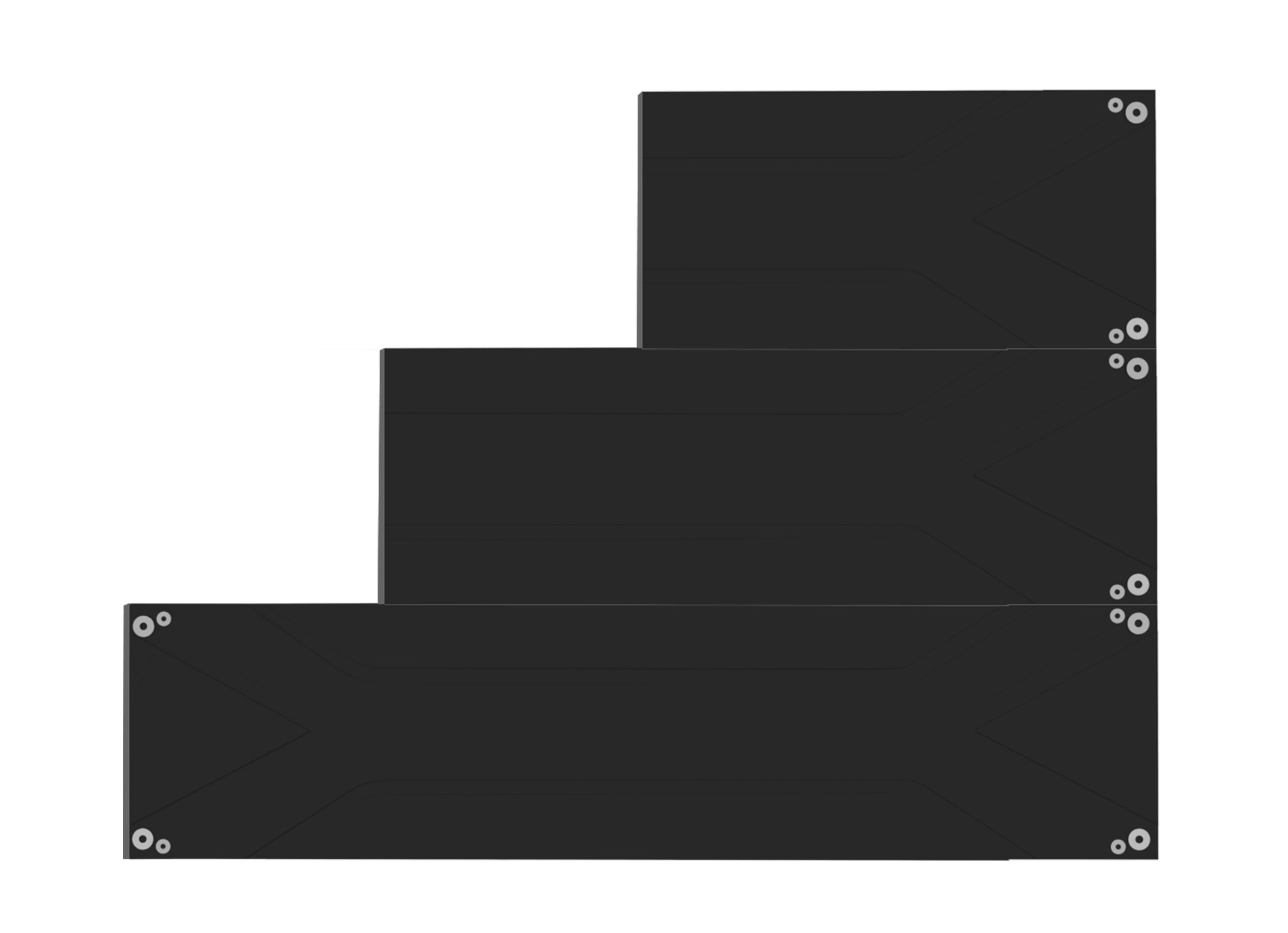

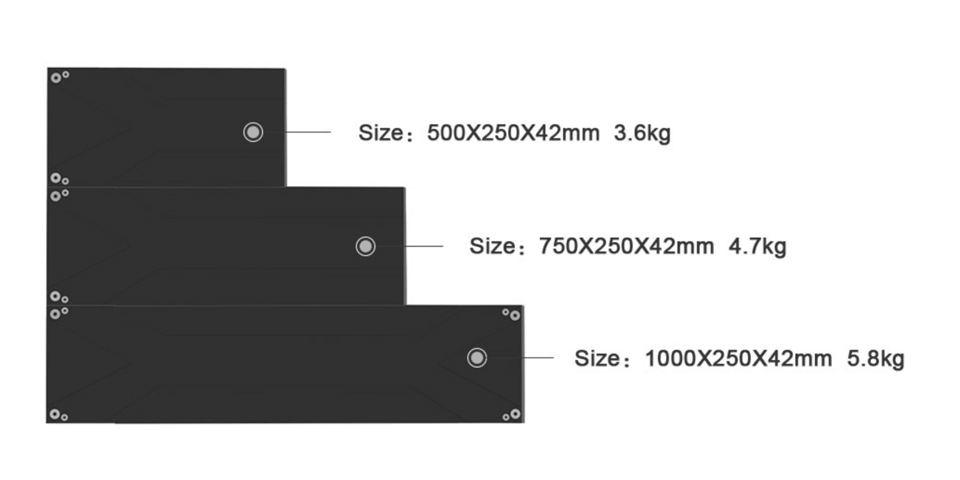

    提供不同尺寸的箱體

    250*500mm /250*750mm /250*1000mm 或定制尺寸，不同尺寸箱體滿足不同應用場景的需求

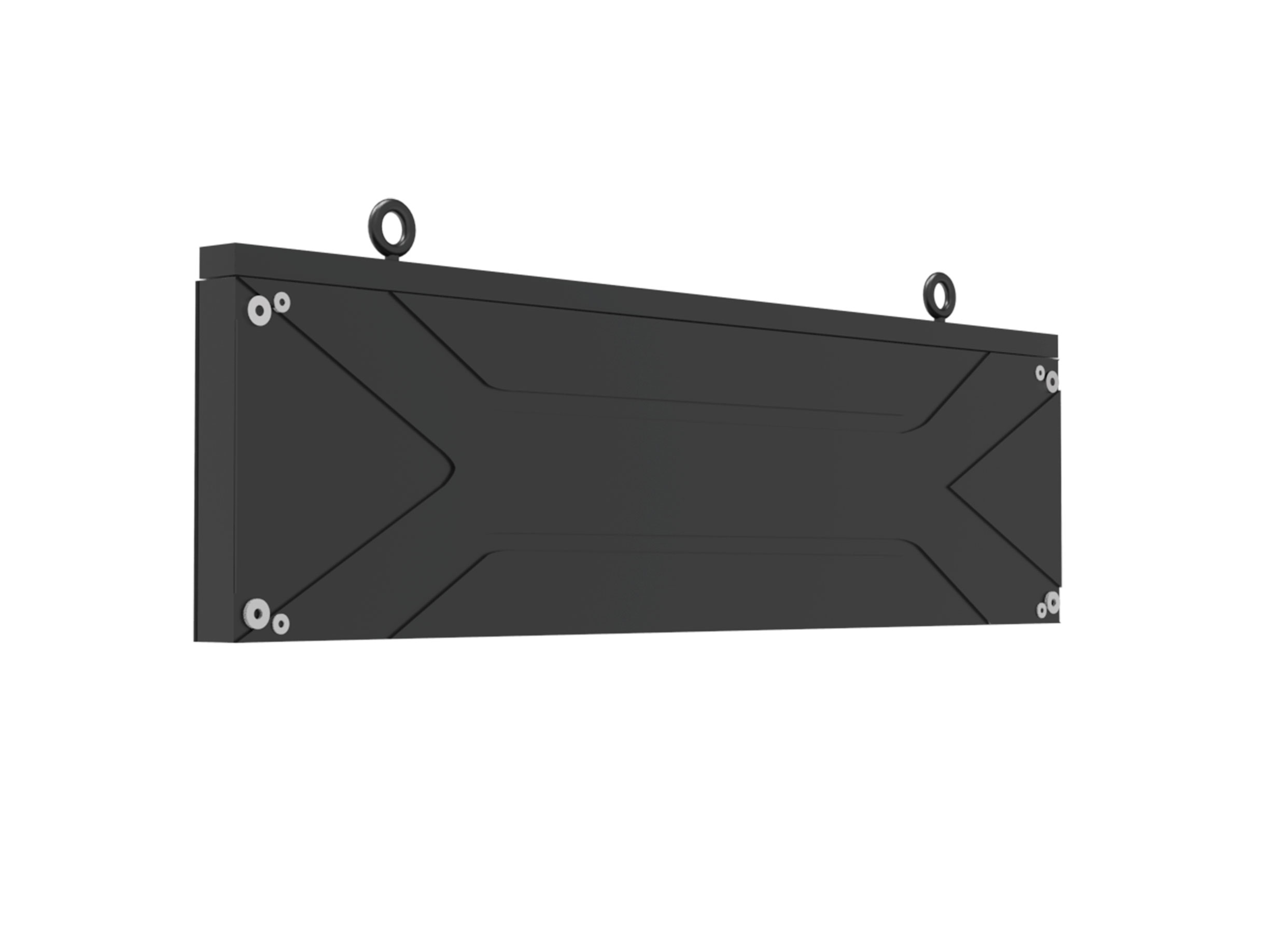

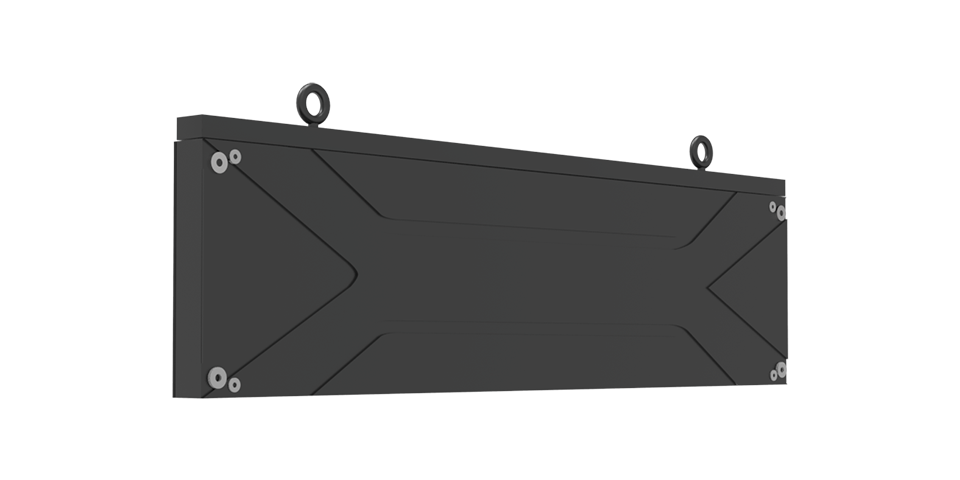

    懸掛安裝

    支持多種安裝方式，壓鑄鋁結構，堅固耐用重量輕，安裝更簡單，且不易變形

  • UT series - Indoor Front Service

    Pixel Pitch(mm)P1.953P2.604 (With Mask)P2.976 (With Mask)P3.91 (With Mask)P4.81 (With Mask)
    Module Size(mm)250*250mm
    Cabinet Size(mm)1000*250/ 750*250/ 500*250
    Brightness(cd/㎡)600cd800cd1000cd800cd800cd
    LED Lamp1515/14151515/14151515/14152121/20202121/2020
    Module Resolution(dots)128*12896*9684*8464*6452*52
    Viewing Distance(m)≧2.5m≧2.5m≧2.9m≧3.9m≧4.8m
    Scan1/32 scan1/32 scan1/28 scan1/16 scan1/13 scan
    LED Driving MethodConstant Current
    Module Maximum Power(W)3528
    Max.Power Consumption(W/㎡)600500
    Average Power Consumption(W/㎡)210180
    Power distribution(W/㎡)740W
    Product Thickness60mm(With bottom shell and cabinet)
    Product Weight(KG/Cabinet)6.5KG/250*1000mm cabinet
    Right Angle CabinetSupport 90° angle
    Operating Input Voltage(V)4.6-5V
    Gray Scale13bits
    Brightness Adjustment256 Brightness Levels
    Refresh Rate1920/3840
    Refresh Frame Frenquncy60HZ
    Cabinet MaterialDie-casting Aluminum Cabinet
    Maintenance100% Front
    Ingress ProtectionIP40
    Continuous Use Time>72h
    Life Span100,000h
    MTBF>10,000h
    Blind Spot Rate<0.01%
    Operating Temperature-20℃～+50℃(Below -20 degrees could be customized)
    Operating HumidityIndoor 10%～60%
