Diamond Pro 鉆石系列

戶外前維護LED顯示屏

尺寸：960*960mm/1000*1000mm

像素間距：P5.71/P6.67/P8/P10

全前/后維護

可選小模組,支持弧形拼接

隱藏式線槽設計，外觀整潔

應用領域：建筑外墻、建筑屋頂、戶外廣告、戶外標牌等

立即聯系我們

  • 點間距：P5.71/P6.67/P8/P10mm

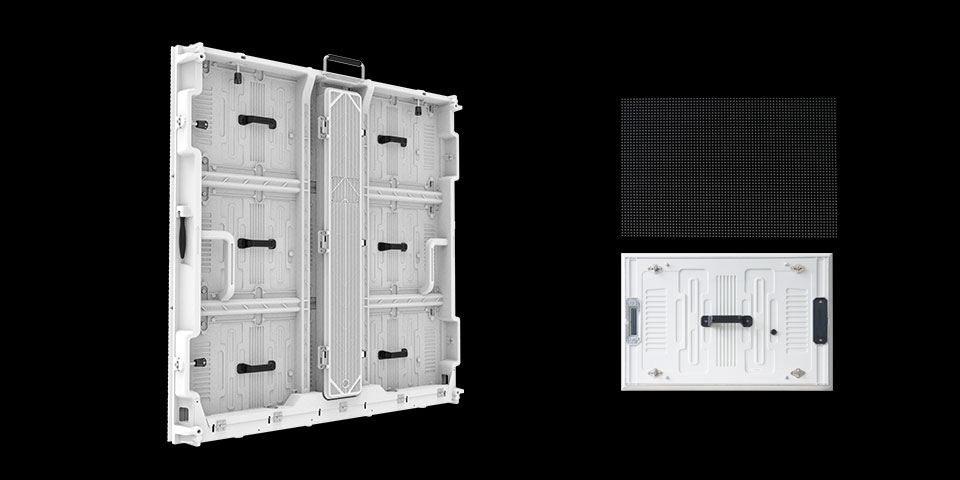

    壓鑄箱體+壓鑄模組（480*320）

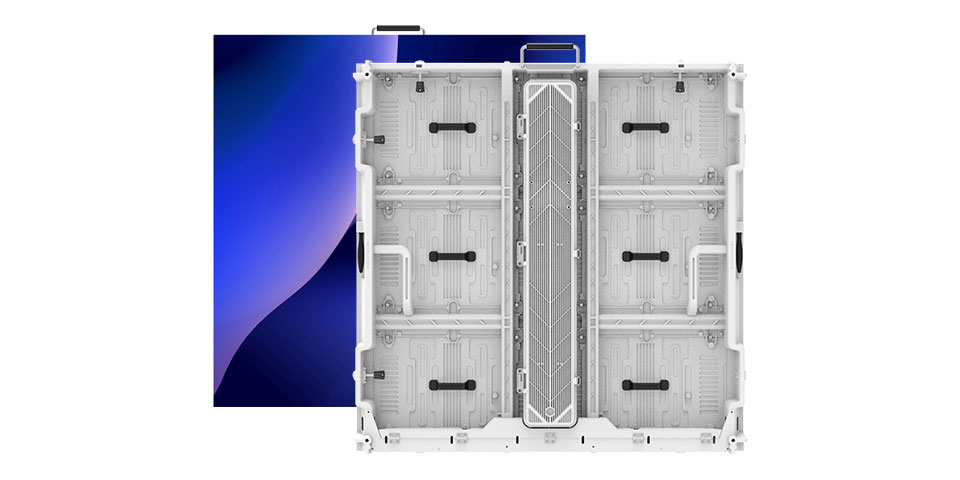

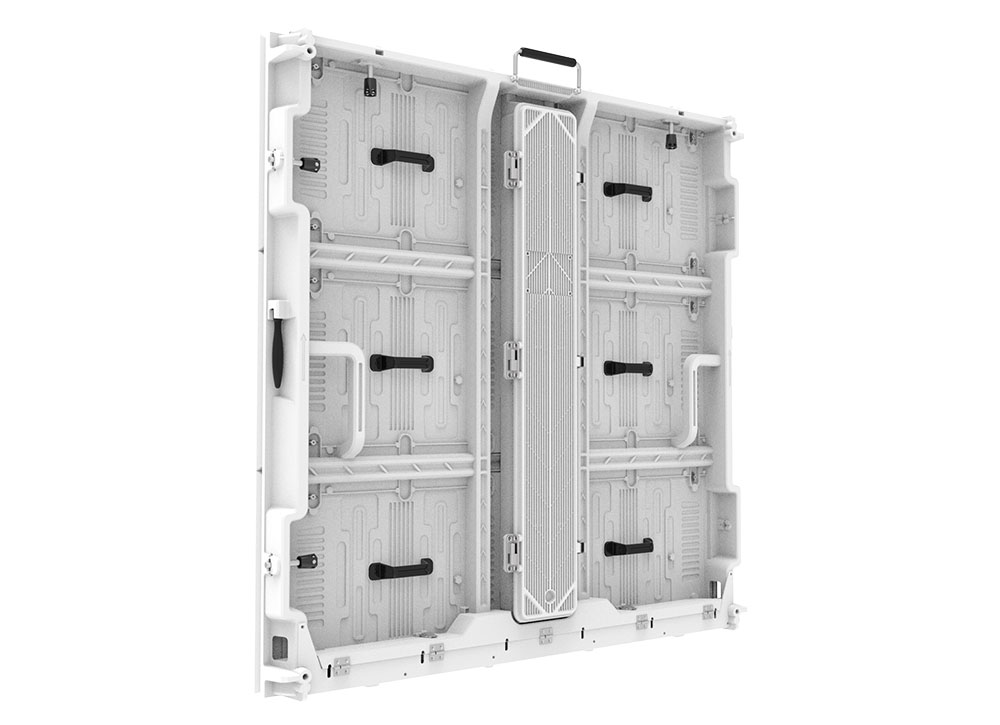

    箱體材質

    壓鑄鋁箱體+壓鑄模組，超高精度提升產品安裝效率

    超高清顯示

    細致的畫面，為戶外廣告帶來無限可能

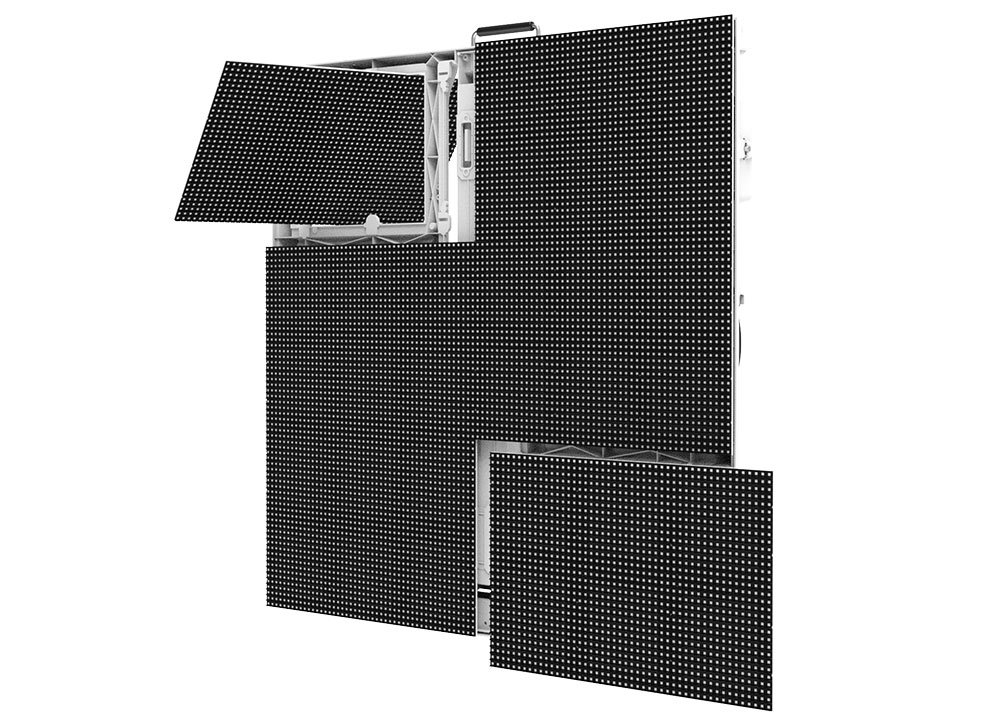

    支持前后雙維護

    維護便捷，雙維護技術加持，讓維護更簡單高效

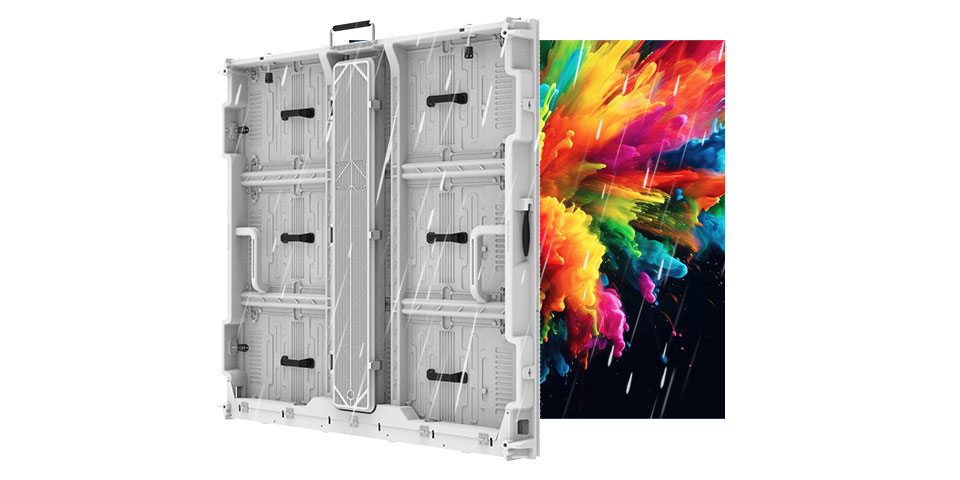

    防水防塵

    采用防水防塵設計，防護等級前/后IP65+

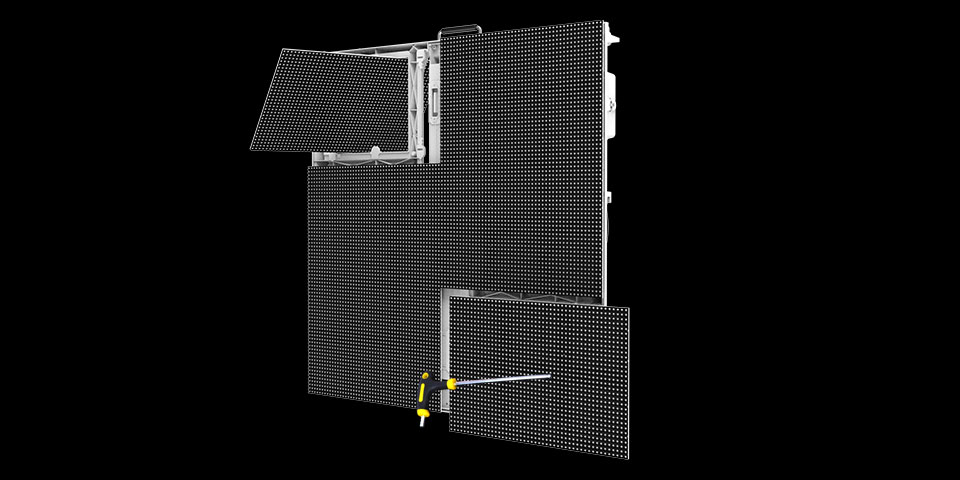

    全前維護

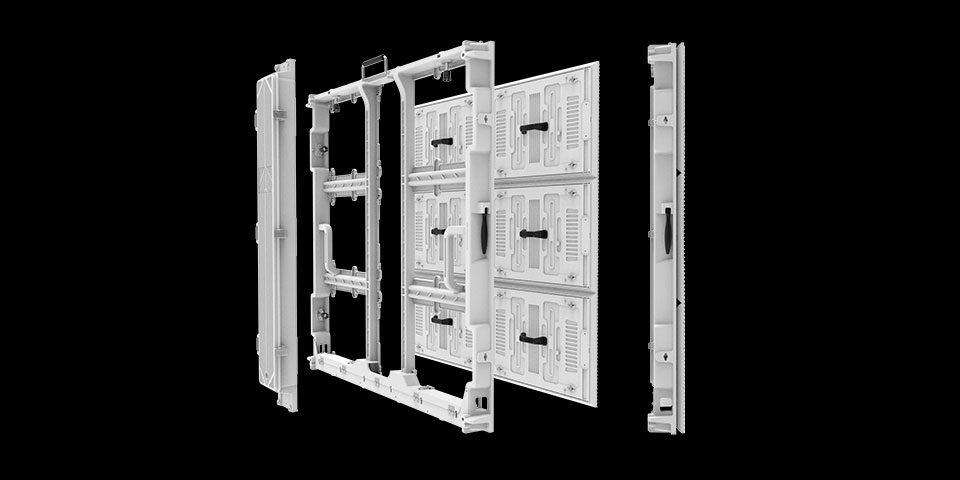

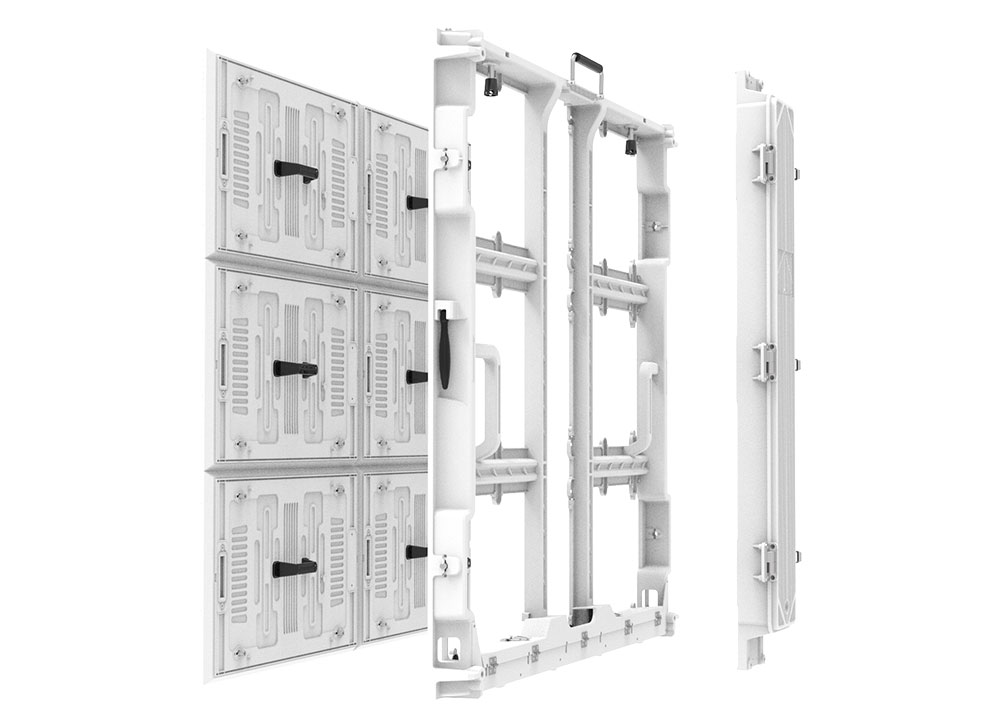

    獨立電源盒+模組+箱體框架

  • Diamond Pro Series - 960 * 960mm Outdoor Front Service
    Pixel PitchP5.71P6.67P8P10
    Pixel Density(m2)30625225001562510000
    Pixel Density(Panel)2822420736144009216
    LED Module Dimensions(mm)480*320*21
    Panel Dimensions(W*H*D)(mm)960*960*92
    Weight Per Module2.32kg
    No. of Modules Per Panel(W*H)2*3
    Scan1/71/61/41/2
    Module Resolution(W*H)84x5672x4860×4048x32
    Panel Resolution(W*H)168x168144x144120×12096×96
    Weight Per Panel27kg/panel
    Weight Per m229.3kg/m2
    Cabinet MaterialAluminum
    ServicingFront and Rear
    IP RatingFront IP 65 & Back IP54
    Brightness(after Cal.)≥6000nits
    Refresh Rate1920-3840HZ
    Horizontal Viewing Angle160°
    Vertical Viewing Angle160°
    Color temperature/
    - Default8000K±500K
    -Adjustable range3500~12,000K
    Processing14bit
    Colours281 trillion
    Contrast Ratio4,000 : 1
    Average Power Consumption230w/m2
    Distribution power consumption per PanelDC4.3V/80A*2=688W
    Distribution power consumption per m2747w/m2
    Max Power Consumption680w/m2
    Max Power Consumption (R/GB Partial voltage supply)620w/m2
    Operating Temp/Humidity-20 ~ 50 °C/ 10% ~ 90%
    Storage Temp/Humidity-30 ~ 60 °C/ 10% ~ 95%
    LED Lifetime100,000 Hrs
